Quick Details
- Light Source: LED
- Item Type: High Bay Lights
- LED Light Source: SMD
- Warranty(Years): 5
- Input Voltage(V): AC100-277V
- Lamp Power(W): 150
- Lamp Luminous Flux(lm): 18000
- Lamp Luminous Efficiency(lm/w): 140
- CRI (Ra>): 80
- Color Temperature(CCT): Pure White
- Working Temperature(℃): -30 - 40
- Working Lifetime(Hour): 50000
- Lamp Body Material: Aluminum
- IP Rating: IP65
- Certification: CE, ETL, RoHS
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Vanplex
- Model Number: VPL-HBU-150WAN-YYK
- Product Name: ETL cETL listed IP65 waterproof 150w ufo led high bay light
- Power: 150w
- Keyword: Ufo Industrial Hig Bay Lighting
- Item name: Industrial LED High Bay Retrofit
- Application: outdoor lighting
- Color: 3000-6500k
- Target market: US and CA
Packaging & Delivery
| Packaging Details | Carton box
Quantity/carton:1pcs Heat Sink Cartion size:300*300*292mm |
|---|---|
| Delivery Time | 5-7 working days(sample order) or 7-15working days (large order) |
ETL cETL listed 5 years warranty IP65 waterproof 150w ufo led high bay light
HPS / HID High Bay Replacement Solution
• 140 lm/w high lumen output, SMD3030 LED
• LM79, LM80, ISTMT, TM21, L70, IES, Photometric data report are available
• 100-277 & 347 - 480 V AC option for industrial and normal appliaction
• 80w / 100w / 120w / 150w / 200w / 240w / 300w /400w are available
• IP65 waterproof, suitable for outdoor and indoor locations
• UL listed Meanwell / Inventronics LED driver, surge protection 5KV / 10KV
• Beam angle option :45° & 60° is for >12m ceiling height, 90° is for 8-12m ceiling height, 120° is for 5-8m ceiling height
• Rated life > 50,000 Hours
• PF>0.95, THD: 5-15%
• DLC ETL cETL CE RoHS
All our UFO high bay light series
| Picture | Model | Power | Voltage | Lumens | Product Size(mm) L x W x H | Certificate |
 | VPL-HBU-80WAN-YYK | 80W | AC100-277V AC347-480V | 110-120lm/w | 360x235x190 | ETL cETL DLC |
| VPL-HBU-100WAN-YYK | 100W | 110-120lm/w | 360x235x190 | ETL cETL DLC | ||
| VPL-HBU-120WAN-YYK | 120W | 110-120lm/w | 360x235x190 | ETL cETL DLC | ||
| VPL-HBU-150WAN-YYK | 150W | 110-120lm/w | 360x235x190 | ETL cETL DLC | ||
| VPL-HBU-200WAN-YYK | 200W | 110-120lm/w | 360x235x190 | ETL cETL DLC | ||
| VPL-HBU-240WAN-YYK | 240W | 110-120lm/w | 360x235x190 | ETL cETL DLC | ||
| VPL-HBU-300WAN-YYK | 300W | 110-120lm/w | 360x235x190 | ETL cETL DLC |
- Die-cast Aluminum Housing
- SMD 3030
- Meanwell LED Driver

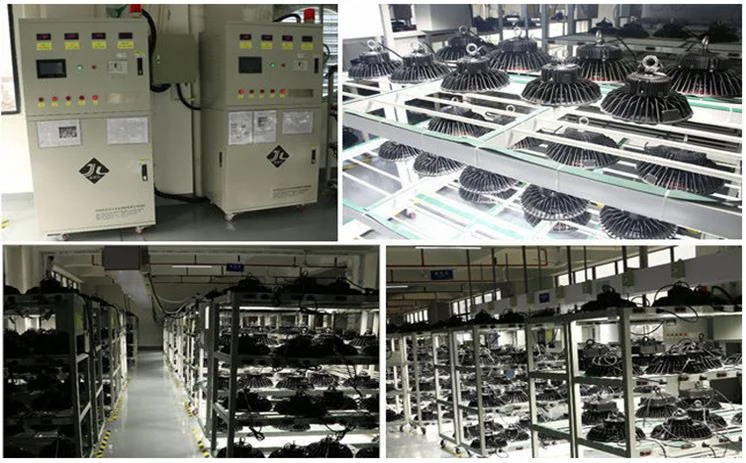

- Aging test
- Assembly Line
1. Surface monuting
2. Chain Hook suspend
3. Rod pendent
Carton box
Quantity/carton:1pcs
Heat Sink Cartion size:300*300*292mm
| Length | Width | Height | Weight | Qty/Carton |
| 45cm | 45cm | 25cm | 7.5kg | 1pc |
1. FOB: Shenzhen, Mainland China. Loading in 5-7 working days(sample order) or 7-15working days (large order) /after confirm purchase order (It usually depends on the quantity)
2. Methods for delivery:
1) By DHL UPS and Fedex express;
2) By sea to the main coastal city in your country;
3) Any other viable methods for delivery accepted by both parties.
Shenzhen Vanplex Optoelectronics Co Ltd was established in 2011, is a leading innovator and manufacturer of commercial and industry LED Lightings.
We provide top quality led tubes, led panel light, led linear light, led wall pack, led canopy, led shoebox, led area light, led high bay, led low bay, led flood light, led stadium light, led corn light, led retrofit kit etc,
with ISO9001:2008 Quality Management System, now most of our products are DLC UL cUL ETL cETL CE RoHS Certifications.
Creative and Quality are the core of each enterprise. We have around 100 skilled workers, 10 experienced engineers, 5000 square meters factory, advanced equipment,
we have our own SMT workshop with 4 sets of SMT machines; process lines with 3 assembly lines and 1 automatic aging burning test lines; and professional experimental laboratory with 1 spectrophotometers, goniophotometer, constant temperature and humidity chamber,
as well as various kinds of test equipments. Strict QC process complying with ISO 9001-2008 system. We are continues to strive for constant improvement in innovation and quality.
